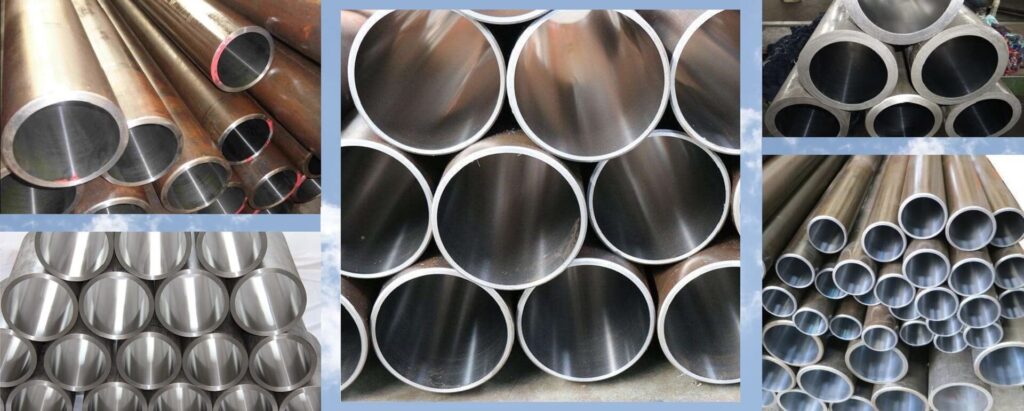

Honed tube sizes supplied by Yiwu Hydraulics are available in both metric sizes and imperial sizes (inch sizes).
As one of the leading hydraulic cylinder tube suppliers and manufacturers, we produce and supply metric honed cylinder tubing with I.D from 32 mm to 762 mm, and imperial honed cylinder tubes with ID from 1″ to 30″.
Size chart of standard metric honed tube sizes.
Chart 1. Metric honed cylinder tube sizes
Our factory manufactures honed tubes with random length and fixed length (cut to length) as per customers’ requests, max length available is 14000 mm.
|
Inside diameter |
Outside Diameter |
Wall thickness | Length |
|
mm |
mm |
mm | m |
| 32 | 40 | 4 | 6 |
| 35 | 45 | 5 | 6 |
| 40 | 50 | 5 | 6 |
| 50 | 60 | 5 | 6 |
| 55 | 65 | 5 | 6 |
| 60 | 70 | 5 | 6 |
| 60 | 75 | 7.5 | 6 |
| 60 | 80 | 10 | 6 |
| 63 | 75 | 6 | 6 |
| 63 | 78 | 7.5 | 6 |
| 65 | 75 | 5 | 6 |
| 65 | 80 | 7.5 | 6 |
| 70 | 80 | 5 | 6 |
| 70 | 85 | 7.5 | 6 |
| 70 | 90 | 10 | 6 |
| 75 | 90 | 7.5 | 6 |
| 75 | 95 | 10 | 6 |
| 80 | 90 | 5 | 6 |
| 80 | 95 | 7.5 | 6 |
| 80 | 100 | 10 | 6 |
| 85 | 100 | 7.5 | 6 |
| 90 | 105 | 7.5 | 6 |
| 100 | 115 | 7.5 | 6 |
| 100 | 120 | 10 | 6 |
| 100 | 125 | 12.5 | 6 |
| 110 | 125 | 7.5 | 6 |
| 110 | 130 | 10 | 6 |
| 115 | 130 | 7.5 | 6 |
| 120 | 140 | 10 | 6 |
| 120 | 145 | 12.5 | 6 |
| 120 | 150 | 15 | 6 |
| 125 | 145 | 10 | 6 |
| 125 | 150 | 12.5 | 6 |
| 130 | 150 | 10 | 6 |
| 140 | 160 | 10 | 6 |
| 140 | 165 | 12.5 | 6 |
| 140 | 170 | 15 | 6 |
| 145 | 170 | 12.5 | 6 |
| 145 | 175 | 15 | 6 |
| 150 | 170 | 10 | 6 |
| 150 | 180 | 15 | 6 |
| 160 | 180 | 10 | 6 |
| 160 | 185 | 12.5 | 6 |
| 160 | 190 | 15 | 6 |
| 160 | 200 | 20 | 6 |
| 180 | 200 | 10 | 6 |
| 180 | 210 | 15 | 6 |
| 180 | 220 | 20 | 6 |
| 200 | 220 | 10 | 6 |
| 200 | 230 | 15 | 6 |
| 200 | 245 | 22.5 | 6 |
| 250 | 300 | 25 | 6 |
Other sizes of our metric honed tubing are available on customer’s request.
As the leading China honed tube supplier & manufacturer, our facotry also supply hydraulic honed tube sizes in broad range of inch sizes (imperial sizes).
Here below is the chart of imperial honed tube sizes
Chart 2. Imperial hydraulic cylinder tube sizes (inch sizes honed tube)
| Inside Diameter | Outside Diameter | Wall Thickness | Weight / Foot |
| (Inch) | (Inch) | (Inch) | (Lbs.) |
| 1 | 1.5 | 0.25 | 3.337 |
| 1.125 | 1.5 | 0.188 | 2.634 |
| 1.25 | 1.625 | 0.188 | 2.885 |
| 1.375 | 1.75 | 0.188 | 3.136 |
| 1.5 | 1.75 | 0.125 | 2.169 |
| 1.5 | 1.875 | 0.188 | 3.379 |
| 1.5 | 2 | 0.25 | 4.673 |
| 1.625 | 2 | 0.188 | 3.63 |
| 1.75 | 2 | 0.125 | 2.503 |
| 1.75 | 2.125 | 0.188 | 3.88 |
| 1.75 | 2.25 | 0.25 | 5.34 |
| 1.875 | 2.25 | 0.188 | 4.13 |
| 2 | 2.375 | 0.188 | 4.38 |
| 2 | 2.5 | 0.25 | 6.008 |
| 2 | 2.75 | 0.375 | 9.512 |
| 2 | 3 | 0.5 | 13.35 |
| 2.125 | 2.5 | 0.188 | 4.631 |
| 2.125 | 2.75 | 0.313 | 8.135 |
| 2.25 | 2.5 | 0.125 | 3.171 |
| 2.25 | 2.625 | 0.188 | 4.881 |
| 2.25 | 2.75 | 0.25 | 6.675 |
| 2.25 | 3 | 0.375 | 10.513 |
| 2.25 | 3.25 | 0.5 | 14.685 |
| 2.375 | 2.5 | 0.063 | 1.627 |
| 2.375 | 2.75 | 0.188 | 5.131 |
| 2.5 | 2.75 | 0.125 | 3.504 |
| 2.5 | 2.875 | 0.188 | 5.382 |
| 2.5 | 3 | 0.25 | 7.343 |
| 2.5 | 3.125 | 0.313 | 9.387 |
| 2.5 | 3.25 | 0.375 | 11.514 |
| 2.5 | 3.5 | 0.5 | 16.02 |
| 2.75 | 3.125 | 0.188 | 5.882 |
| 2.75 | 3.25 | 0.25 | 8.01 |
| 2.75 | 3.5 | 0.375 | 12.516 |
| 2.75 | 3.625 | 0.438 | 14.894 |
| 2.875 | 3.5 | 0.313 | 10.638 |
| 2.875 | 4 | 0.563 | 20.651 |
| 3 | 3.25 | 0.125 | 4.172 |
| 3 | 3.375 | 0.188 | 6.383 |
| 3 | 3.5 | 0.25 | 8.678 |
| 3 | 3.625 | 0.313 | 11.055 |
| 3 | 3.75 | 0.375 | 13.517 |
| 3 | 4 | 0.5 | 18.69 |
| 3 | 4.500* | 0.75 | 30.038 |
| 3.25 | 3.5 | 0.125 | 4.506 |
| 3.25 | 3.625 | 0.188 | 6.884 |
| 3.25 | 3.75 | 0.25 | 9.345 |
| 3.25 | 3.875 | 0.313 | 11.89 |
| 3.25 | 4 | 0.375 | 14.518 |
| 3.25 | 4.25 | 0.5 | 20.025 |
| 3.5 | 3.75 | 0.125 | 4.839 |
| 3.5 | 3.875 | 0.188 | 7.384 |
| 3.5 | 4 | 0.25 | 10.013 |
| 3.5 | 4.125 | 0.313 | 12.724 |
| 3.5 | 4.25 | 0.375 | 15.519 |
| 3.5 | 4.5 | 0.5 | 21.36 |
| 3.5 | 4.75 | 0.625 | 27.534 |
| 3.625 | 4 | 0.188 | 7.653 |
| 3.75 | 4 | 0.125 | 5.173 |
| 3.75 | 4.25 | 0.25 | 10.68 |
| 3.75 | 4.5 | 0.375 | 16.521 |
| 4 | 4.375 | 0.188 | 8.385 |
| 4 | 4.5 | 0.25 | 11.348 |
| 4 | 4.625 | 0.313 | 14.393 |
| 4 | 4.75 | 0.375 | 17.522 |
| 4 | 5 | 0.5 | 24.03 |
| 4 | 5.25 | 0.625 | 30.872 |
| 4 | 5.750* | 0.875 | 45.557 |
| 4.25 | 4.75 | 0.25 | 12.015 |
| 4.25 | 5 | 0.375 | 18.523 |
| 4.5 | 5 | 0.25 | 12.683 |
| 4.5 | 5.125 | 0.313 | 16.062 |
| 4.5 | 5.25 | 0.375 | 19.524 |
| 4.5 | 5.5 | 0.5 | 26.7 |
| 4.75 | 5.25 | 0.25 | 13.35 |
| 4.75 | 5.5 | 0.375 | 20.526 |
| 5 | 5.25 | 0.125 | 6.842 |
| 5 | 5.5 | 0.25 | 14.018 |
| 5 | 5.625 | 0.313 | 17.73 |
| 5 | 5.75 | 0.375 | 21.527 |
| 5 | 6 | 0.5 | 29.37 |
| 5 | 6.25 | 0.625 | 37.547 |
| 5.25 | 5.75 | 0.25 | 14.685 |
| 5.25 | 6 | 0.375 | 22.528 |
| 5.25 | 6.25 | 0.5 | 30.705 |
| 5.5 | 6 | 0.25 | 15.353 |
| 5.5 | 6.25 | 0.375 | 23.529 |
| 5.5 | 6.5 | 0.5 | 32.04 |
| 5.5 | 7.000* | 0.75 | 50.063 |
| 5.75 | 6.5 | 0.375 | 24.531 |
| 5.75 | 6.75 | 0.5 | 33.375 |
| 6 | 6.25 | 0.125 | 8.177 |
| 6 | 6.375 | 0.188 | 12.39 |
| 6 | 6.5 | 0.25 | 16.688 |
| 6 | 6.625 | 0.313 | 21.068 |
| 6 | 6.75 | 0.375 | 25.532 |
| 6 | 7 | 0.5 | 34.71 |
| 6 | 7.25 | 0.625 | 44.222 |
| 6 | 7.500* | 0.75 | 54.068 |
| 6 | 8.000* | 1 | 74.76 |
| 6.25 | 6.75 | 0.25 | 17.355 |
| 6.25 | 7 | 0.375 | 26.533 |
| 6.25 | 7.25 | 0.5 | 36.045 |
| 6.5 | 7 | 0.25 | 18.023 |
| 6.5 | 7.25 | 0.375 | 27.534 |
| 6.5 | 7.5 | 0.5 | 37.38 |
| 6.5 | 7.75 | 0.625 | 47.559 |
| 6.5 | 8.000* | 0.75 | 58.073 |
| 6.75 | 7.5 | 0.375 | 28.536 |
| 7 | 7.5 | 0.25 | 19.358 |
| 7 | 7.75 | 0.375 | 29.537 |
| 7 | 8 | 0.5 | 40.05 |
| 7 | 8.25 | 0.625 | 50.897 |
| 7 | 8.500* | 0.75 | 62.078 |
| 7 | 9.000* | 1 | 85.44 |
| 7.25 | 8 | 0.375 | 30.538 |
| 7.25 | 8.25 | 0.5 | 41.385 |
| 7.25 | 8.750* | 0.75 | 64.08 |
| 7.5 | 8 | 0.25 | 20.693 |
| 7.5 | 8.25 | 0.375 | 31.539 |
| 7.5 | 8.5 | 0.5 | 42.72 |
| 7.5 | 9.000* | 0.75 | 66.083 |
| 7.75 | 8.5 | 0.375 | 32.541 |
| 8 | 8.5 | 0.25 | 22.028 |
| 8 | 8.75 | 0.375 | 33.542 |
| 8 | 9 | 0.5 | 45.39 |
| 8 | 9.25 | 0.625 | 57.572 |
| 8 | 9.500* | 0.75 | 70.088 |
| 8 | 10.000* | 1 | 96.12 |
| 8.25 | 9 | 0.375 | 34.543 |
| 8.25 | 9.25 | 0.5 | 46.725 |
| 8.5 | 9 | 0.25 | 23.363 |
| 8.5 | 9.5 | 0.5 | 48.06 |
| 8.5 | 10.000* | 0.75 | 74.093 |
| 8.75 | 9.75 | 0.5 | 49.395 |
| 9 | 10 | 0.5 | 50.73 |
| 9 | 10.25 | 0.625 | 64.247 |
| 9 | 10.500* | 0.75 | 78.098 |
| 9.25 | 10 | 0.375 | 38.548 |
| 9.25 | 10.25 | 0.5 | 52.065 |
| 9.25 | 10.5 | 0.625 | 65.916 |
| 9.75 | 10.5 | 0.375 | 40.551 |
| 10 | 10.75 | 0.375 | 41.552 |
| 10 | 11 | 0.5 | 56.07 |
| 10 | 11.500* | 0.75 | 86.108 |
| 10 | 11.750* | 0.875 | 101.627 |
| 10 | 12.000* | 1 | 117.48 |
| 10.5 | 12.000* | 0.75 | 90.113 |
| 11 | 12 | 0.5 | 61.41 |
| 12 | 14.000* | 1 | 138.84 |
| 14 | 16.000* | 1 | 160.2 |
Besides the above honed tube size chart, other inch sizes of our imperial size honed tubes are also available according to clients requests.
